Filtering & Detrending

Commands that reject outliers, smooth the light curve, or remove ensemble-level systematics.

clip — Sigma clipping

Syntax

cmd.clip(sigclip, iterative=True, niter=None, median=False,
         markclip=None, noinitmark=False, maskpoints=None)

Description

Sigma-clip outliers from the light curve. Points with errors ≤ 0 or NaN magnitude values are always removed. If sigclip ≤ 0, sigma-clipping is disabled but invalid points are still dropped. With iterative=True (the default) the clipping loop repeats until no further points are removed; pass iterative=False for a single pass, or set niter to clip a fixed number of times. Use median=True to clip relative to the median rather than the mean. The markclip keyword tags points instead of removing them — surviving points are set to 1, clipped points to 0 — leaving the LC length unchanged.

CLI equivalent: -clip.

Parameters

Parameter Type Description
sigclip float or str Clipping threshold in units of the standard deviation. Accepts a number, variable name, or expression string.
iterative bool Repeat clipping until no points are removed (default True).
niter int, str, or None Clip at most this many times (overrides iterative). Accepts a number, variable name, or expression.
median bool Clip relative to the median instead of the mean.
markclip str or None Variable name to record the clipping mask (1 = kept, 0 = clipped). The light curve length is unchanged when this is set.
noinitmark bool Treat existing values of the markclip variable as an initial mask: only points with markclip = 1 are considered for further clipping.
maskpoints str or None Mask variable; points with maskvar ≤ 0 are excluded from the clipping statistics.

Output

Suffix N is the pipeline command index:

Column Description
Nclip_N Number of points removed by the clip step.

Examples

lc = vt.LightCurve.from_file("EXAMPLES/5")

# Compute RMS, apply 3-sigma clipping, compute RMS of clipped LC
result = (
    lc.rms()
      .clip(3.0)
      .rms()
)
print(result.vars["Nclip_1"])    # 51 points removed
print(result.vars["RMS_2"])      # RMS after clipping

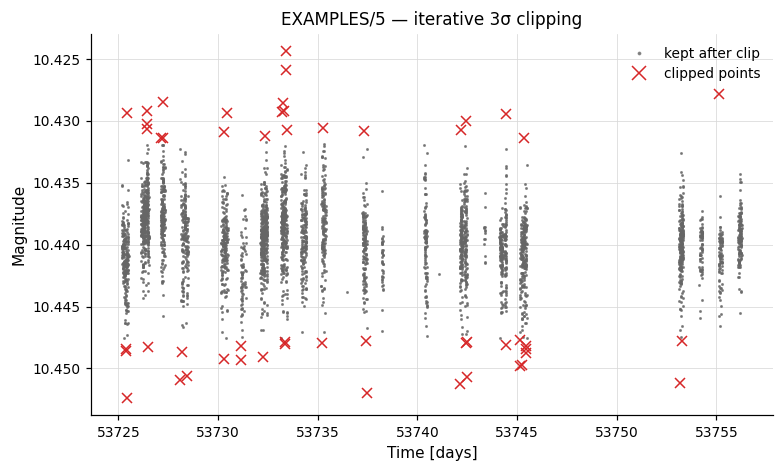

Iterative 3σ clipping of EXAMPLES/5

medianfilter — Median filtering

Syntax

cmd.medianfilter(time, method="median", replace=False)

Description

Apply a sliding-window high-pass or low-pass filter to the light curve. By default the local median magnitude (computed over points within time of each observation) is subtracted from each point — a high-pass filter. Set method="average" or method="weightedaverage" to use the running mean instead. Pass replace=True to replace each point with the running statistic rather than subtracting it, converting the operation to a low-pass filter.

CLI equivalent: -medianfilter.

Parameters

Parameter Type Description
time float or str Half-window width in the same units as the time coordinate. Accepts var/expr forms.
method str Local statistic: "median" (default), "average" (running mean), or "weightedaverage" (uncertainty-weighted mean).
replace bool When True, replace each point with the running statistic (low-pass filter). When False (default), subtract the statistic (high-pass filter).

Output

medianfilter modifies the light curve in place and produces no per-LC statistics columns. With replace=False the magnitude of each point is replaced by mag − running_statistic; with replace=True it is replaced by the running statistic itself. Downstream commands operate on the filtered light curve.

Examples

lc = vt.LightCurve.from_file("EXAMPLES/1")

# High-pass and low-pass median filter: save LC, process both ways
pipe = (vt.Pipeline()
        .chi2()
        .savelc()
        .medianfilter(0.05)
        .chi2()
        .restorelc(savenumber=1)
        .medianfilter(0.05, replace=True)
        .chi2())
result = pipe.run(lc)
print(result.vars["Chi2_0"])   # original
print(result.vars["Chi2_3"])   # after high-pass filter
print(result.vars["Chi2_6"])   # after low-pass filter

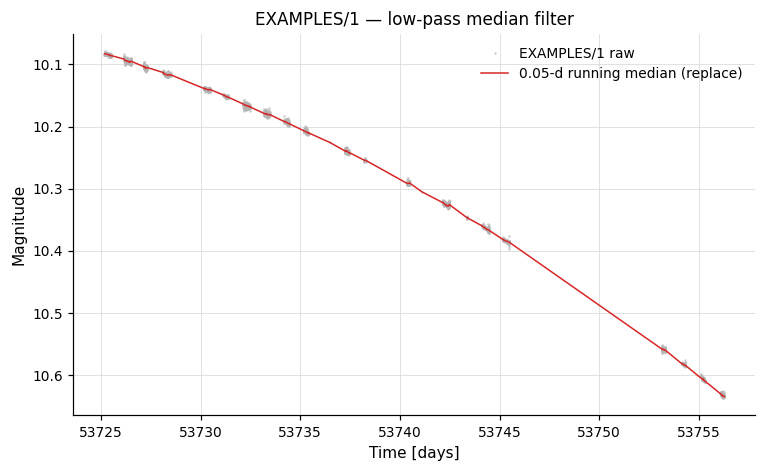

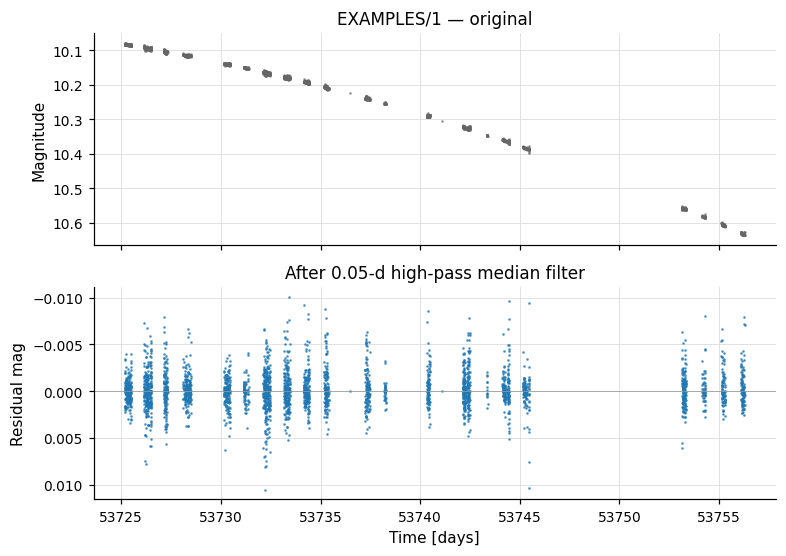

EXAMPLES/1 — high-pass median filter (residuals) EXAMPLES/1 — low-pass median filter (replace mode)

harmonicfilter — Harmonic series subtraction

Syntax

cmd.harmonicfilter(period="ls", nharm=3, nsubharm=0, save_model=False,
                   fitonly=False, output_format=None, clip=None,
                   maskpoints=None)

Description

Fit and (by default) subtract a truncated Fourier series at one or more known periods, whitening the light curve against those periods. The model has the form

sum_i [ sum_{k=0}^{Nharm}(a_{i,k} sin(2π(k+1) f_i t) + b_{i,k} cos(2π(k+1) f_i t))
      + sum_{k=0}^{Nsubharm}(c_{i,k} sin(2π f_i t/(k+1)) + d_{i,k} cos(2π f_i t/(k+1))) ]

By default the whitened light curve is passed downstream; pass fitonly=True to fit without subtracting. Use harmonicfilter when you know the period(s) you want to remove. For full-band filtering without a known period use fourierfilter.

cmd.Killharm(...) is accepted as a backward-compatible synonym (it invokes the same vartools command under the -Killharm token and produces output columns under the legacy Killharm_* prefix; the new class produces HarmonicFilter_*). New code should use cmd.harmonicfilter.

CLI equivalent: -harmonicfilter.

Parameters

Parameter Type Description
period float or str Period to fit. Can be a number or "ls", "aov", "bls", "both", "injectharm", "fixcolumn NAME", or "fix val1 val2..." for multiple periods.
nharm int Number of higher harmonics (frequencies 2f₀, 3f₀, … (Nharm+1)f₀).
nsubharm int Number of sub-harmonics (frequencies f₀/2, f₀/3, … f₀/(Nsubharm+1)).
save_model bool, str, or Output Auxiliary file output. True captures as result.files["harmonicfilter_model_N"] (or "Killharm_model_N" when called as cmd.Killharm). See Auxiliary output files.
fitonly bool Fit the model but do not subtract it (statistics are still computed).
output_format str or None Coefficient output format: "outampphase", "outampradphase", "outRphi", or "outRradphi".
clip float or None Sigma-clipping threshold: fit, clip outliers, then refit.
maskpoints str or None Mask variable; points with maskvar ≤ 0 are excluded from the fit.

Back-references work across chain steps

period accepts "ls", "aov", "bls", "both", "injectharm", and "fixcolumn NAME". For "aov", the most recent prior -aov or -aov_harm wins (whichever ran later). All of these resolve equally inside a single Pipeline or across chain boundaries. "both" supplies two periods (LS + AOV) and works in a single-LC chain, but raises NotImplementedError in batch-chain mode — use a single Pipeline invocation for batch "both" fitting. Missing prior command → LookupError.

Output

Suffix N is the pipeline command index; per-period coefficients are tagged with a Per<k> segment (k = 1, 2, … is the 1-based period index when more than one period is fit):

Column Description
HarmonicFilter_Mean_Mag_N Mean magnitude after the fit.
HarmonicFilter_Period_k_N Period(s) used in the fit (one column per period).
HarmonicFilter_Per<k>_Amplitude_N Peak-to-trough amplitude of the best-fit model at period k.
HarmonicFilter_Per<k>_Fundamental_*_N, HarmonicFilter_Per<k>_Harm_<n>_*_N, HarmonicFilter_Per<k>_Subharm_<n>_*_N Per-period harmonic coefficients in one of four representations selected by output_format (default {Sin,Cos}coeff; outampphase → {Amp,Phi} in cycles; outampradphase → {Amp,Phi} in radians; outRphi/outRradphi → relative R/Phi representations).

When called via the legacy Killharm synonym, columns appear under the Killharm_* prefix.

When save_model is enabled:

File key Description
result.files["harmonicfilter_model_N"] DataFrame: time, original magnitude, and the best-fit harmonic model. (result.files["Killharm_model_N"] when invoked via cmd.Killharm.)

Examples

Example 1. Search EXAMPLES/2 with Lomb-Scargle, then fit and subtract a sinusoid at the LS period. The two rms/chi2 calls show the residual statistics before and after subtraction.

lc = vt.LightCurve.from_file("EXAMPLES/2")
pipe = (vt.Pipeline()
        .LS(0.1, 10.0, 0.1, npeaks=1)
        .rms()
        .chi2()
        .harmonicfilter("ls", nharm=0, nsubharm=0)
        .rms()
        .chi2())
result = pipe.run(lc)

Example 2. Fit a 10-harmonic Fourier model to the RR Lyrae light curve EXAMPLES/M3.V006.lc at a fixed 0.514333-day period. The model is saved (save_model), the LC is left unchanged (fitonly=True), and amplitudes/phases are reported in the relative R_k1, φ_k1 form (output_format="outRphi") — that representation can be fed directly to Injectharm to inject the same RR-Lyrae shape with a different overall amplitude or phase.

lc = vt.LightCurve.from_file("EXAMPLES/M3.V006.lc")
result = lc.harmonicfilter(period="fix 0.514333", nharm=10, nsubharm=0,
                           save_model="EXAMPLES/OUTDIR1",
                           fitonly=True,
                           output_format="outRphi")

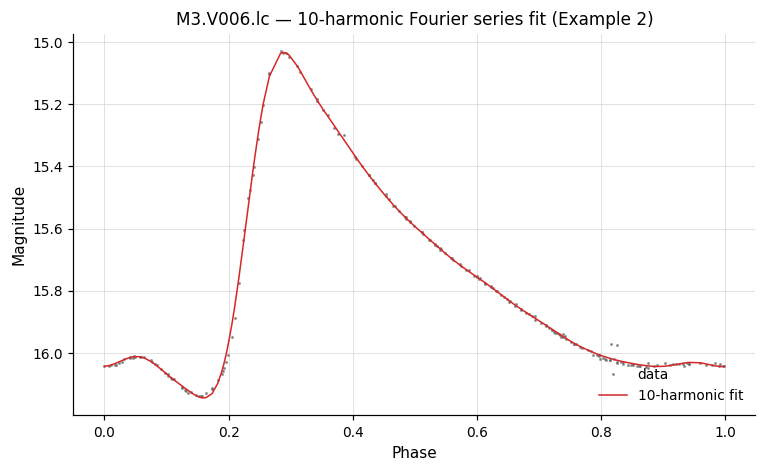

M3.V006.lc — 10-harmonic Fourier-series fit

fourierfilter — Full-band Fourier-domain filter

Syntax

cmd.fourierfilter(mode="full", minfreq=None, maxfreq=None,
                  filterexpr=None, freqvar=None,
                  fullspec=False, forcefft=False,
                  taper=None, taper_deltafreq=None, taper_beta=None,
                  resample=None,
                  gapbreak_type=None, gapbreak_value=None,
                  padmode=None, padfrac=None,
                  nowarn=False, save_fouriercoeffs=False)

Description

Apply a Fourier-domain filter to the whole light curve. A band filter and/or an analytic filterexpr is applied in frequency space using GSL's mixed-radix complex FFT, and the filtered light curve replaces the input. Distinct from harmonicfilter, which fits a Fourier series at one or more known periods; use fourierfilter when you want to keep or reject a frequency band without specifying any period in advance.

There are two algorithmic paths:

  1. Uniform sampling (or forcefft=True) — the FFT runs directly on the input samples.
  2. resample=<delta> — the LC is linearly interpolated onto a uniform grid first, FFT-filtered, IFFT-reconstructed, then interpolated back to the original sample times. Required for non-uniformly sampled data; can be combined with gapbreak_type/gapbreak_value to filter each segment of a gapped LC independently.

Non-uniform sampling without resample

If the LC is detected as non-uniform and resample is not given (and forcefft is not given either), the command prints a warning to stderr and skips the filter for that LC — the mag column passes through unchanged. Subsequent LCs and subsequent pipeline commands continue normally. Set nowarn=True to silence the warning in batch use.

CLI equivalent: -fourierfilter.

Parameters

Parameter Type Description
mode str One of "full", "highpass", "lowpass", "bandpass", "bandcut".
minfreq float or str, conditional Low-frequency cutoff (cycles per time-unit). Required for highpass/bandpass/bandcut. Accepts the var/expr/fixcolumn forms.
maxfreq float or str, conditional High-frequency cutoff. Required for lowpass/bandpass/bandcut.
filterexpr str, optional Analytic filter W(f) multiplied into every Fourier coefficient. The frequency variable defaults to f; use freqvar to rename.
freqvar str, optional Override the variable name used in filterexpr.
fullspec bool Compute coefficients across the full Nyquist range even when the band is narrower (useful with save_fouriercoeffs).
forcefft bool Force the direct-FFT path even when sampling is not detected as uniform.
taper str, optional Smooth-edge taper at each cut: "linear", "cosine" (aliases "tukey", "hann"), "blackman", or "kaiser".
taper_deltafreq float, conditional Half-width of the taper window in frequency units. Required when taper is given.
taper_beta float, conditional Shape parameter for taper="kaiser" (≈5 ≈ Hann-like).
resample float, str, or None Enable the resample-FFT-IFFT-resample path. Accepts "delmin" (LC's minimum dt), a positive number (fixed Δt), or a string expression.
gapbreak_type str, optional Split the resampled LC at gaps and filter each segment independently: "fix", "expr", "frac_min_sep", "frac_med_sep", or "percentile_sep". Requires resample.
gapbreak_value float or str, conditional Threshold value for the gap-break spec.
padmode str, optional Edge padding before the FFT: "wrap" (default; native FFT periodicity), "reflect", or "zero".
padfrac float, optional Pad length per side as a fraction of segment length. Default 0.5 for reflect/zero, 0 for wrap.
nowarn bool Suppress per-LC runtime warnings (non-uniform advisory, gap-vs-minfreq, taper-edge overlap, etc.).
save_fouriercoeffs bool, str, or Output Write Fourier cos/sin coefficients to a file. True captures as result.files["fourierfilter_fouriercoeffs_N"]. See Auxiliary output files.

Output

Suffix N is the pipeline command index:

Column Description
FourierFilter_Mean_Mag_N Weighted mean magnitude (the FFT DC term; preserved across the filter).
FourierFilter_RMS_In_N RMS of the input light curve.
FourierFilter_RMS_Out_N RMS of the filtered light curve.
FourierFilter_Nfreqcalc_N Total positive-frequency FFT bins computed up to Nyquist (Ntot/2, summed across gap-break segments).
FourierFilter_Nfreqfilt_N Bins falling inside the filter pass band; equals Nfreqcalc for mode="full".

When save_fouriercoeffs is set:

File key Description
result.files["fourierfilter_fouriercoeffs_N"] DataFrame with frequency vs. cos/sin coefficient pair (and a second pair when filterexpr is set, for pre/post-filter coefficients).

Examples

These mirror the five CLI examples on the -fourierfilter reference page. Examples 1–3 use the uniformly-sampled light curve EXAMPLES/2.simuniformsample; examples 4–5 use EXAMPLES/2.simtesssample — the same underlying signal as 1–3, re-sampled at TESS short-cadence (~2 min) over a single 27-day sector with a ~1-day data-downlink gap mid-sector — and exercise the resample and gapbreak_* keywords.

Example 1. Low-pass filter at 1.0 cycles/day with a cosine taper to suppress Gibbs ringing at the cut edge.

lc = vt.LightCurve.from_file("EXAMPLES/2.simuniformsample")
result = (vt.Pipeline()
          .rms()
          .fourierfilter(mode="lowpass", maxfreq=1.0,
                         taper="cosine", taper_deltafreq=0.1)
          .rms()).run(lc)
print(result.vars[["RMS_0", "FourierFilter_RMS_Out_1", "RMS_2"]])

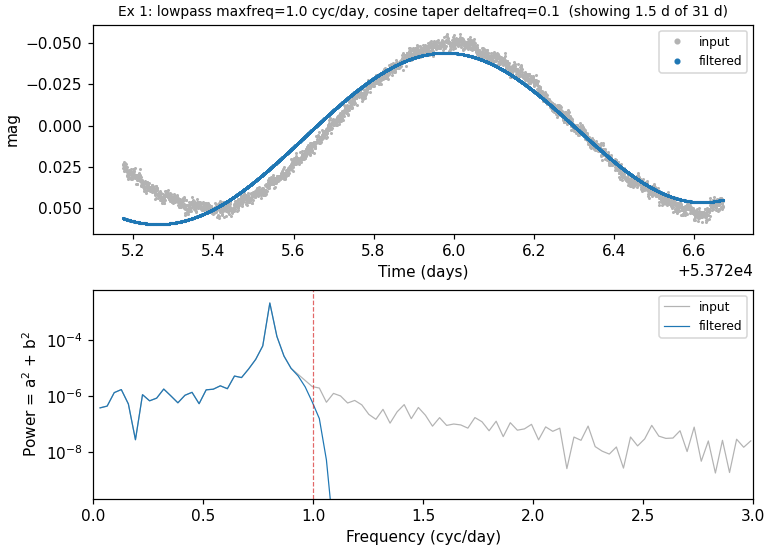

EXAMPLES/2.simuniformsample — low-pass at 1 cyc/day

Example 2. Band-pass filter between 0.5 and 1.25 cycles/day — chosen to enclose the ~0.81 cyc/day injected signal. save_fouriercoeffs=Output(..., capture=True) writes the Fourier coefficients to disk and captures them as a DataFrame in result.files; pass a bare path string for the write-only form.

lc = vt.LightCurve.from_file("EXAMPLES/2.simuniformsample")
result = lc.fourierfilter(mode="bandpass", minfreq=0.5, maxfreq=1.25,
                          save_fouriercoeffs=vt.Output("EXAMPLES/OUTDIR1",
                                                       capture=True))
coeffs = result.files["fourierfilter_fouriercoeffs_0"]
print(f"{len(coeffs)} frequency bins, columns: {list(coeffs.columns)}")

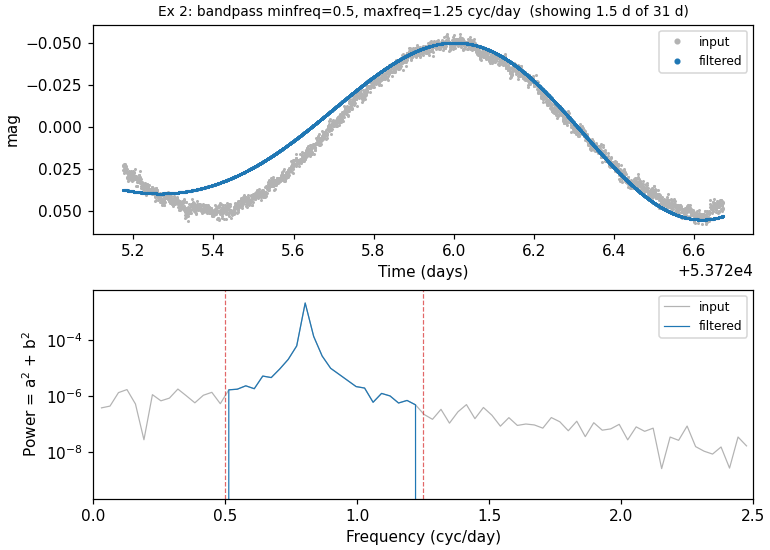

EXAMPLES/2.simuniformsample — band-pass 0.5-1.25 cyc/day

Example 3. Apply an analytic Gaussian filter W(f) = exp(-(f/0.5)²) to every Fourier coefficient on a full-band fit. The variable f in the expression is in cycles per time-unit (cycles/day here); vartools' expression parser uses ^ for exponentiation.

lc = vt.LightCurve.from_file("EXAMPLES/2.simuniformsample")
result = (vt.Pipeline()
          .rms()
          .fourierfilter(mode="full", filterexpr="exp(-(f/0.5)^2)")
          .rms()).run(lc)
print(result.vars[["RMS_0", "FourierFilter_RMS_Out_1", "RMS_2"]])

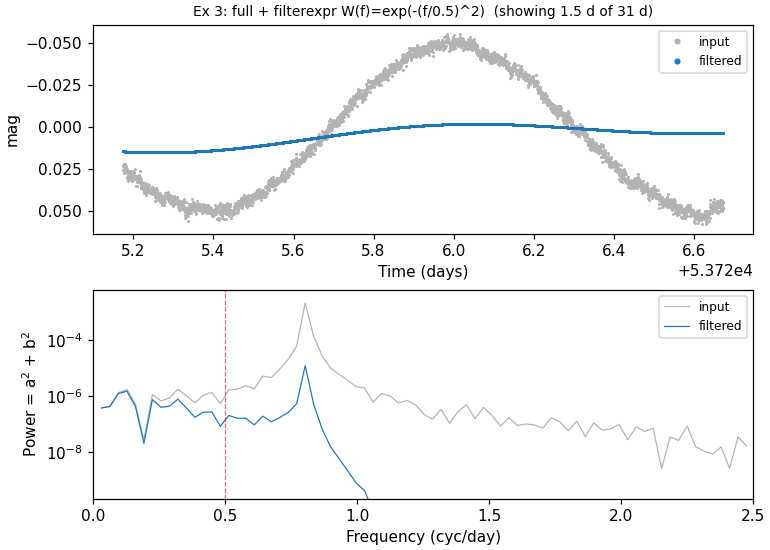

EXAMPLES/2.simuniformsample — Gaussian analytic filter

Example 4. Same low-pass filter as Example 1, applied to the TESS-like LC. The data-downlink gap makes the sampling non-uniform, so resample="delmin" is required: the LC is interpolated onto a uniform grid at the minimum dt, FFT-filtered, then interpolated back.

lc = vt.LightCurve.from_file("EXAMPLES/2.simtesssample")
result = (vt.Pipeline()
          .rms()
          .fourierfilter(mode="lowpass", maxfreq=1.0,
                         taper="cosine", taper_deltafreq=0.1,
                         resample="delmin")
          .rms()).run(lc)
print(result.vars[["RMS_0", "FourierFilter_RMS_Out_1", "RMS_2"]])

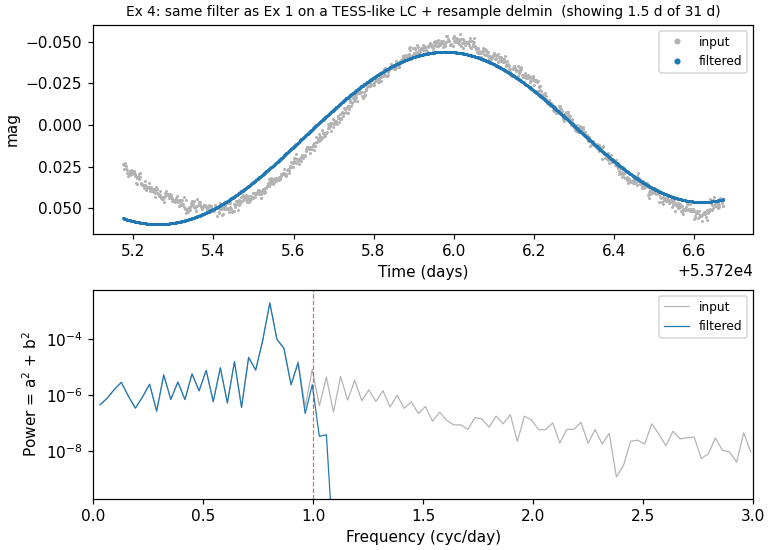

EXAMPLES/2.simtesssample — low-pass with resample

Example 5. High-pass filter with gap-break on the TESS-like LC. gapbreak_type="frac_med_sep", gapbreak_value=100 splits the light curve at any inter-sample gap wider than 100 × the median dt; only the ~1-day data-downlink gap qualifies, so the LC is filtered as two independent segments. For highpass/bandpass modes all segments are anchored at the overall-LC weighted mean, so there are no inter-segment jumps.

lc = vt.LightCurve.from_file("EXAMPLES/2.simtesssample")
result = (vt.Pipeline()
          .rms()
          .fourierfilter(mode="highpass", minfreq=2.0,
                         taper="cosine", taper_deltafreq=0.1,
                         resample="delmin",
                         gapbreak_type="frac_med_sep", gapbreak_value=100)
          .rms()).run(lc)
print(result.vars[["RMS_0", "FourierFilter_RMS_Out_1", "RMS_2"]])

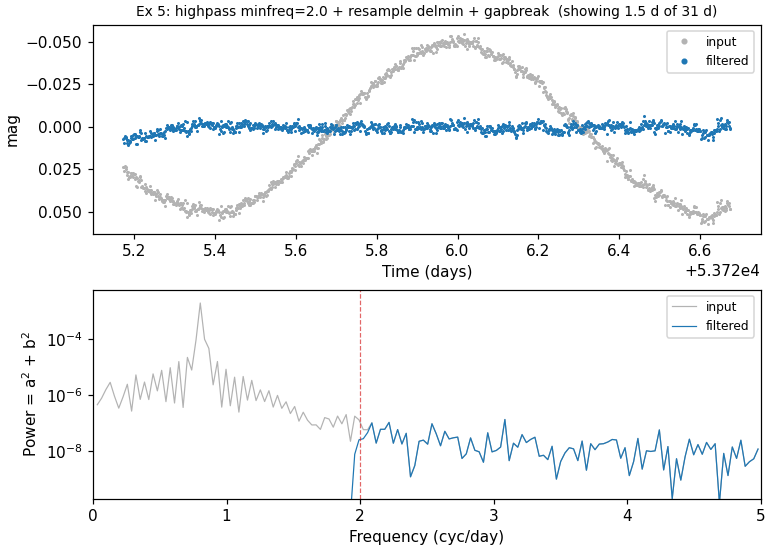

EXAMPLES/2.simtesssample — high-pass with gap-break

restricttimes / restoretimes — Time windowing

Syntax

cmd.restricttimes(mode="JDrange", minJD=None, maxJD=None,
                  JDfilename=None, expression=None, exclude=False,
                  markrestrict=None, noinitmark=False)
cmd.restoretimes(prior_command=1)

Description

restricttimes filters observations from the light curve based on time, string IDs, or an analytic expression. By default only points matching the criterion are kept; pass exclude=True to remove matching points instead. Available modes are "JDrange" (a single JD interval applied to every LC), "JDrangebylc" (per-LC interval), "JDlist"/"imagelist" (read times or string IDs from a file), and "expr" (keep points where a boolean expression evaluates to > 0). With markrestrict set, points are tagged rather than removed: kept points get markrestrict=1, dropped points get 0, and the light curve length is preserved.

restoretimes re-attaches points removed by a prior restricttimes command (referenced by 1-based pipeline index). Restored points are appended and the light curve is re-sorted by time. restoretimes cannot be used together with a markrestrict-style restriction.

CLI equivalent: -restricttimes and -restoretimes.

Parameters (restricttimes)

Parameter Type Description
mode str One of "JDrange", "JDrangebylc", "JDlist", "imagelist", "expr".
minJD, maxJD float, str, or None JD bounds for "JDrange" / "JDrangebylc".
JDfilename str or None File with allowed JD values ("JDlist") or string IDs ("imagelist").
expression str or None Boolean expression for "expr" mode (kept where >0).
exclude bool Invert the selection — remove matching points instead of keeping them.
markrestrict str or None Variable name to mark kept (1) and dropped (0) points instead of removing them.
noinitmark bool Treat existing markrestrict values as an initial mask.

Parameters (restoretimes)

Parameter Type Description
prior_command int 1-based index of the restricttimes step to undo.

Output

Suffix N is the pipeline command index:

Column Description
RestrictTimes_MinJD_N / RestrictTimes_MaxJD_N When mode="JDrange" or "JDrangebylc", the JD range applied to this light curve.

restoretimes emits no statistics columns — it modifies the active light curve in place by re-appending the previously removed points.

Examples

Example 1. Restrict EXAMPLES/3 to 53740 < t < 53750. The two stats calls show the timespan before and after the cut.

lc = vt.LightCurve.from_file("EXAMPLES/3")
pipe = (vt.Pipeline()
        .stats("t", "min,max")
        .restricttimes(mode="JDrange", minJD=53740, maxJD=53750)
        .stats("t", "min,max"))
result = pipe.run(lc)

Example 2. Restrict using a boolean expression on magnitude.

pipe = (vt.Pipeline()
        .restricttimes(mode="expr",
                       expression="(mag>10.16311)&&(mag<10.17027)"))
result = pipe.run(lc, capture_lc=True)

Example 3. Cut by 20th–80th percentile of the magnitude distribution.

pipe = (vt.Pipeline()
        .stats("mag", "pct20.0,pct80.0")
        .restricttimes(mode="expr",
                       expression="(mag>STATS_mag_PCT20_00_0)&&"
                                  "(mag<STATS_mag_PCT80_00_0)")
        .stats("mag", "min,max"))
result = pipe.run(lc)

Example 4. Restrict to a JD window, compute statistics, then restore the full light curve. The three rms calls show the full LC is recovered.

pipe = (vt.Pipeline()
        .rms()
        .restricttimes(mode="JDrange", minJD=53740, maxJD=53750)
        .rms()
        .restoretimes(prior_command=1)
        .rms())
result = pipe.run(lc)

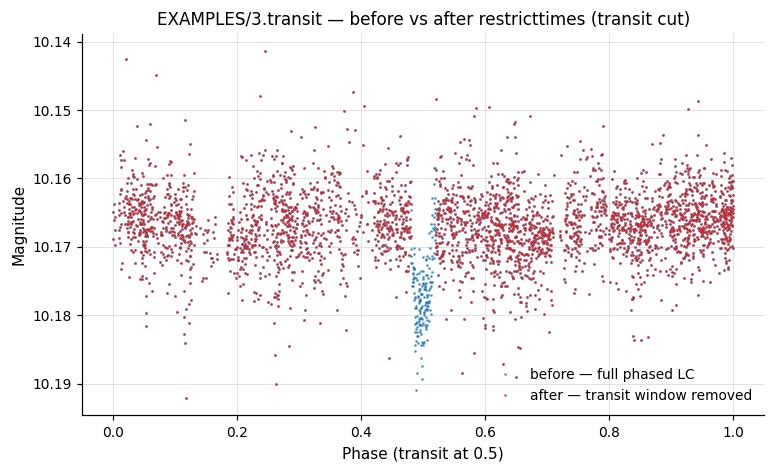

For a phased illustration, the next figure shows EXAMPLES/3.transit phased on its BLS period before and after restricttimes(mode="expr", expression="(t<0.48)||(t>0.52)") removes the in-transit points:

Phased EXAMPLES/3.transit — before/after the transit cut

TFA — Trend Filtering Algorithm

Syntax

cmd.TFA(trendlist, dates_file, pixelsep, correct_lc=True,
        save_coeffs=False, save_model=False, xycol=None,
        clip=None, usemedian=False, useMAD=False,
        readformat=None, trend_coeff_priors=None,
        weight_by_template_stddev=False, fitmask=None,
        outfitmask=None)

Description

Run the Trend Filtering Algorithm (Kovács, Bakos & Noyes 2005) on the light curves. TFA fits each LC as a linear combination of a set of template (basis) light curves and subtracts the fit, yielding a detrended LC. A light-curve list (run_filelist) is required, and the x/y pixel positions of each LC must be available as columns in the list. Trend stars within pixelsep of the source are excluded to avoid self-filtering.

CLI equivalent: -TFA.

Parameters

Parameter Type Description
trendlist str Path to a file listing the trend (template) light curves. Each row: trendname trendx trendy.
dates_file str Path to the dates file (column 1: filename/id; column 2: JD).
pixelsep float Maximum pixel separation for selecting trend stars. Templates closer than this to the source are excluded.
correct_lc bool Subtract the TFA model from the light curve. Default True.
save_coeffs bool, str, or Output Per-LC trend coefficients. True captures as result.files["TFA_coeffs_N"]. See Auxiliary output files.
save_model bool, str, or Output Per-LC TFA model. True captures as result.files["TFA_model_N"].
xycol (int, int) or None Column numbers (xcol, ycol) for pixel coordinates in the trend list.
clip float or None Sigma-clipping threshold during TFA fitting (default 5σ when set).
usemedian bool Use median instead of mean as the clipping reference.
useMAD bool Use MAD instead of standard deviation for the clipping scatter.
readformat tuple or None (Nskip, jdcol, magcol) non-default light-curve read format.
trend_coeff_priors str or None Path to a Gaussian-prior file for trend coefficients.
weight_by_template_stddev bool Weight points by 1/ave_template_stddev instead of 1/err.
fitmask str or None Mask variable; only points where fitmask = 1 are included in the trend fit. The model is still evaluated and subtracted at excluded points.
outfitmask str or None Variable name to record the post-clipping fit mask.

Output

Suffix N is the pipeline command index:

Column Description
TFA_MeanMag_N Out-of-fit mean magnitude.
TFA_RMS_N Post-filter RMS.

When save_* keywords are set:

File key Description
result.files["TFA_coeffs_N"] DataFrame: trend coefficients for each template.
result.files["TFA_model_N"] DataFrame: the TFA model evaluated at each observation.

References

Kovács, Bakos & Noyes 2005, MNRAS, 356, 557.

Examples

Example 1. Apply TFA to the light curves in EXAMPLES/lc_list_tfa (EXAMPLES/3.transit is the only LC in the list); trend stars within 25 pixels of the source are excluded.

batch = (vt.Pipeline()
         .rms()
         .TFA(trendlist="EXAMPLES/trendlist_tfa",
              dates_file="EXAMPLES/dates_tfa",
              pixelsep=25.0, xycol=(2, 3),
              correct_lc=True)
         ).run_filelist("EXAMPLES/lc_list_tfa")

TFA_SR — TFA with signal reconstruction

Syntax

cmd.TFA_SR(trendlist, dates_file, pixelsep, dotfafirst=1,
           tfathresh=0.001, maxiter=10, signal_mode="bin",
           signal_params=None, signal_period=None,
           correct_lc=True, decorr_params=None, ...)

Description

Run TFA in Signal Reconstruction (SR) mode. TFA-SR iteratively applies TFA and fits a signal model to the light curve, allowing the algorithm to preserve astrophysical signal that would otherwise be partially filtered out by plain TFA. The signal model is selected by signal_mode: "bin" (phase-binned), "signal" (read from a per-LC signal file), or "harm" (truncated Fourier series with signal_params=(Nharm, Nsubharm)). Most other parameters mirror TFA — see that command for the shared keywords.

CLI equivalent: -TFA_SR.

Parameters (in addition to those of TFA)

Parameter Type Description
dotfafirst int 1 = apply TFA first each iteration, then fit the signal to the residual; 0 = subtract the signal first, then apply TFA.
tfathresh float Iteration stops when the fractional RMS change falls below this threshold.
maxiter int Maximum number of TFA-SR iterations.
signal_mode str Signal-model type: "bin", "signal", or "harm".
signal_params varies For "bin": nbins (int). For "signal": filename (str). For "harm": (Nharm, Nsubharm) tuple.
signal_period float, str, or None Period sub-option for "bin" or "harm" signal modes. Float emits "period" val; string keyword "ls", "aov", or "bls" inherits the best period from the most recent matching prior command. The keyword resolves equally in a single Pipeline and across chain steps. Missing prior command → LookupError.
decorr_params str or None Raw token string for simultaneous EPD decorrelation, e.g. "0 2 col1 1 col2 2" (iterativeflag Nlcterms lccolumn1 lcorder1 ...).

Output

Suffix N is the pipeline command index:

Column Description
TFA_SR_MeanMag_N Out-of-fit mean magnitude.
TFA_SR_RMS_N Post-filter RMS.

When save_* keywords are set, file keys mirror those of TFA (result.files["TFA_coeffs_N"], result.files["TFA_model_N"]).

References

Kovács, Bakos & Noyes 2005, MNRAS, 356, 557.

Known issue

The current wrapper emits the xycol block before the positional pixelsep value, which the CLI rejects. Until that is fixed in pyvartools, examples that need xycol should drop down to subprocess.run.

Examples

The canonical TFA_SR example involves several steps (LS / Killharm before-after / TFA / TFA_SR) and the xycol issue noted above. The shortest runnable Python equivalent goes via subprocess:

import subprocess
subprocess.run([
    "vartools",
    "-l", "EXAMPLES/lc_list_tfa_sr_harm", "-oneline", "-rms",
    "-LS", "0.1", "10.", "0.1", "1", "0",
    "-savelc",
    "-Killharm", "ls", "0", "0", "0",
    "-rms", "-restorelc", "1",
    "-TFA", "EXAMPLES/trendlist_tfa", "EXAMPLES/dates_tfa",
        "25.0", "xycol", "2", "3", "1", "0", "0",
    "-Killharm", "ls", "0", "0", "0",
    "-rms", "-restorelc", "1",
    "-TFA_SR", "EXAMPLES/trendlist_tfa", "EXAMPLES/dates_tfa",
        "25.0", "xycol", "2", "3", "1",
        "1", "EXAMPLES/OUTDIR1", "1", "EXAMPLES/OUTDIR1",
        "0", "0.001", "100", "harm", "0", "0", "period", "ls",
    "-o", "EXAMPLES/OUTDIR1", "nameformat", "2.test_tfa_sr_harm",
    "-Killharm", "ls", "0", "0", "0",
    "-rms", "-restorelc", "1",
], check=True)

SYSREM — Systematic noise removal

Syntax

cmd.SYSREM(ninput_color, ninput_airmass, initial_airmass_file,
           sigma_clip1=5.0, sigma_clip2=5.0, saturation=1e9,
           correct_lc=True, save_model=False, save_trends=False,
           useweights=1, col=None)

Description

Run the SYSREM PCA-like algorithm of Tamuz, Mazeh & Zucker (2005) to identify and remove ensemble trends from a set of light curves. SYSREM iteratively fits a small number of "color"-like (per-star) and "airmass"-like (per-image) terms to the residuals and subtracts them. This command requires a light-curve list (run_filelist) and automatically sets the -readall option.

CLI equivalent: -SYSREM.

Parameters

Parameter Type Description
ninput_color int Number of initial "color"-like (per-star) trends. Values are read from the input light-curve list.
col int or None Column in the input list for the first color term (subsequent terms follow in order).
ninput_airmass int Number of initial "airmass"-like (per-image) trends.
initial_airmass_file str File with initial airmass trends (column 1: JD; subsequent columns: trend values).
sigma_clip1 float σ-clipping threshold for the mean-magnitude calculation.
sigma_clip2 float σ-clipping threshold for which points contribute to the airmass/color terms.
saturation float Magnitudes brighter than this value do not contribute to the fit.
correct_lc bool Subtract the SYSREM model from each light curve.
save_model bool, str, or Output Per-LC model. True captures as result.files["SYSREM_model_N"]. See Auxiliary output files.
save_trends bool, str, or Output Single global trend file (the converged airmass/color trend vectors for the run). True writes to a default path inside the per-command output directory and captures as result.files["SYSREM_trends_N"]; pass a string path to write to a specific file (and still capture).
useweights int 1 to weight observations by their formal uncertainties; 0 to weight uniformly.

Output

Suffix N is the pipeline command index:

Column Description
SYSREM_MeanMag_N Mean magnitude after SYSREM.
SYSREM_RMS_N Post-filter RMS.
SYSREM_Trend_<k>_Coeff_N Per-LC trend coefficient for trend k (k = 0, 1, … ninput_color + ninput_airmass − 1).

When save_* keywords are set:

File key Description
result.files["SYSREM_model_N"] Per-LC SYSREM model (JD mag mag_model sig clip). One DataFrame per LC (list-valued in batch results).
result.files["SYSREM_trends_N"] Single global trends file: row per JD, columns JD trend_0 trend_1 … trend_{Ntrends−1} where Ntrends = ninput_color + ninput_airmass. Single DataFrame (not a list) — the file is shared across the whole batch.

References

Tamuz, Mazeh & Zucker 2005, MNRAS, 356, 1466.

Examples

Example 1. Apply SYSREM to the light curves listed in EXAMPLES/trendlist_tfa. Two color-like terms (cols 2 and 3 of the list) and one airmass-like term (the time series in EXAMPLES/3) are used; the corrected light curves are passed downstream, and both the per-LC SYSREM models and the single global trends file are captured.

batch = (vt.Pipeline()
         .rms()
         .SYSREM(ninput_color=2, ninput_airmass=1,
                 initial_airmass_file="EXAMPLES/3",
                 sigma_clip1=5.0, sigma_clip2=5.0,
                 saturation=8.0,
                 correct_lc=True,
                 save_model=True,
                 save_trends=True,
                 useweights=1)
         .rms()
         ).run_filelist("EXAMPLES/trendlist_tfa")
trends = batch.files["SYSREM_trends_1"]   # single DataFrame: JD + 3 trend columns
print(trends.shape, trends.head())
