reconstruction/lr_states_dc.c File Reference

First order (donor cell, piecewise constant) spatial reconstruction. More...

Go to the source code of this file.

Functions
void	lr_states (const GridS *pG, const Prim1DS W[], const Real Bxc[], const Real dt, const Real dx, const int il, const int iu, Prim1DS Wl[], Prim1DS Wr[], const enum DIRECTION dir)
	Computes L/R states.
void	lr_states_init (MeshS *pM)
	NoOp for first order, but included for compatibility with integrator (needed for 2nd and 3rd order).
void	lr_states_destruct (void)
	NoOp for first order, but included for compatibility with integrator (needed for 2nd and 3rd order).

---

Detailed Description

First order (donor cell, piecewise constant) spatial reconstruction.

PURPOSE: First order (donor cell, piecewise constant) spatial reconstruction.

• The L/R-states at the left-interface in each cell are indexed i.
• W_{L,i-1/2} is denoted by Wl[i ]; W_{R,i-1/2} is denoted by Wr[i ]
• W_{L,i+1/2} is denoted by Wl[i+1]; W_{R,i+1/2} is denoted by Wr[i+1]

CONTAINS PUBLIC FUNCTIONS:

• lr_states() - computes L/R states
• lr_states_init() - NoOp function in this case
• lr_states_destruct() - NoOp function in this case

Definition in file lr_states_dc.c.

---

Function Documentation

void lr_states	(	const GridS *	pG,
		const Prim1DS	W[],
		const Real	Bxc[],
		const Real	dt,
		const Real	dx,
		const int	il,
		const int	iu,
		Prim1DS	Wl[],
		Prim1DS	Wr[],
		const enum DIRECTION	dir
	)

Computes L/R states.

Input Arguments:

• W = PRIMITIVE variables at cell centers along 1-D slice
• Bxc = B in direction of slice at cell centers
• dtodx = dt/dx
• il,iu = lower and upper indices of zone centers in slice W must be initialized over [il-1:iu+1]

Output Arguments:

• Wl,Wr = L/R-states of PRIMITIVE variables at interfaces over [il:iu+1]

Definition at line 44 of file lr_states_dc.c.

Referenced by integrate_1d_ctu(), integrate_1d_vl(), integrate_2d_ctu(), integrate_2d_vl(), integrate_3d_ctu(), and integrate_3d_vl().

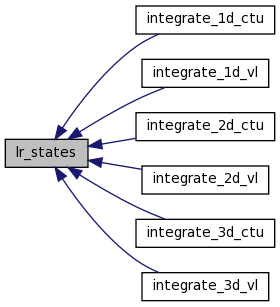

Here is the caller graph for this function:

void lr_states_destruct

(

void

)

NoOp for first order, but included for compatibility with integrator (needed for 2nd and 3rd order).

Free memory used by work arrays.

Definition at line 73 of file lr_states_dc.c.

Referenced by lr_states_init(), and main().

Here is the caller graph for this function:

void lr_states_init

(

MeshS *

pM

)

NoOp for first order, but included for compatibility with integrator (needed for 2nd and 3rd order).

Allocate enough memory for work arrays.

Definition at line 63 of file lr_states_dc.c.

Referenced by main().

Here is the caller graph for this function:
