Classes
struct	ath_3d_fft_plan
struct	ath_2d_fft_plan
Enumerations
enum	ath_fft_direction { ATH_FFT_FORWARD = -1, ATH_FFT_BACKWARD = 1 }
Functions
struct ath_3d_fft_plan *	ath_3d_fft_quick_plan (DomainS pD, ath_fft_data data, ath_fft_direction dir)
	Sets up an FFT plan for the entire 3D grid, using ath_3d_fft_create_plan().
struct ath_3d_fft_plan *	ath_3d_fft_create_plan (int gnx3, int gnx2, int gnx1, int gks, int gke, int gjs, int gje, int gis, int gie, ath_fft_data *data, int al, ath_fft_direction dir)
	Sets up a 3D FFT plan.
ath_fft_data *	ath_3d_fft_malloc (struct ath_3d_fft_plan *ath_plan)
	Easy allocation of data array needed for particular 3D plan.
void	ath_3d_fft (struct ath_3d_fft_plan ath_plan, ath_fft_data data)
	Performs a 3D FFT in place.
void	ath_3d_fft_free (ath_fft_data *data)
	Frees memory used to hold data for 3D FFT.
void	ath_3d_fft_destroy_plan (struct ath_3d_fft_plan *ath_plan)
	Frees a 3D FFT plan.
struct ath_2d_fft_plan *	ath_2d_fft_quick_plan (DomainS pD, ath_fft_data data, ath_fft_direction dir)
	Sets up an FFT plan for the entire 2D grid, assuming NX3=1, using ath_2d_fft_create_plan().
struct ath_2d_fft_plan *	ath_2d_fft_create_plan (int gnx2, int gnx1, int gjs, int gje, int gis, int gie, ath_fft_data *data, int al, ath_fft_direction dir)
	Sets up a 2D FFT plan.
ath_fft_data *	ath_2d_fft_malloc (struct ath_2d_fft_plan *ath_plan)
	Easy allocation of data array needed for particular 2D plan.
void	ath_2d_fft (struct ath_2d_fft_plan ath_plan, ath_fft_data data)
void	ath_2d_fft_free (ath_fft_data *data)
	Frees memory used to hold data for 2D FFT.
void	ath_2d_fft_destroy_plan (struct ath_2d_fft_plan *ath_plan)
	Frees a 2D FFT plan.

Enumeration Type Documentation

enum ath_fft_direction

Enumerator:

ATH_FFT_FORWARD
ATH_FFT_BACKWARD

Definition at line 58 of file prototypes.h.

Function Documentation

void ath_2d_fft	(	struct ath_2d_fft_plan *	ath_plan,
		ath_fft_data *	data
	)

struct ath_2d_fft_plan* ath_2d_fft_create_plan	(	int	gnx2,
		int	gnx1,
		int	gjs,
		int	gje,
		int	gis,
		int	gie,
		ath_fft_data *	data,
		int	al,
		ath_fft_direction	dir
	)			`[read]`

Sets up a 2D FFT plan.

gnx2, gnx1 are the dimensions of the GLOBAL data
gjs, gje, gis, gie are the starting and ending indices of the LOCAL data in GLOBAL coordinates
dir is either ATH_FFT_FOWARD or ATH_FFT_BACKWARD FFTs will be done in place (overwrite data)

Definition at line 251 of file ath_fft.c.

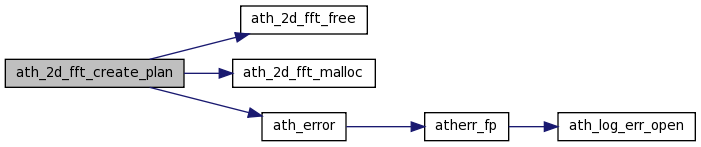

References ath_2d_fft_free(), ath_2d_fft_malloc(), ath_error(), ATH_FFT_BACKWARD, ATH_FFT_FORWARD, ath_2d_fft_plan::cnt, ath_2d_fft_plan::dir, ath_2d_fft_plan::gcnt, and ath_2d_fft_plan::plan.

Referenced by ath_2d_fft_quick_plan().

Here is the call graph for this function:

Here is the caller graph for this function:

void ath_2d_fft_destroy_plan ( struct ath_2d_fft_plan * ath_plan )

Frees a 2D FFT plan.

Definition at line 345 of file ath_fft.c.

References ath_2d_fft_plan::plan.

void ath_2d_fft_free ( ath_fft_data * data )

Frees memory used to hold data for 2D FFT.

Definition at line 334 of file ath_fft.c.

Referenced by ath_2d_fft_create_plan().

Here is the caller graph for this function:

ath_fft_data* ath_2d_fft_malloc ( struct ath_2d_fft_plan * ath_plan )

Easy allocation of data array needed for particular 2D plan.

Definition at line 308 of file ath_fft.c.

References ath_2d_fft_plan::cnt.

Referenced by ath_2d_fft_create_plan(), and selfg_fft_2d_init().

Here is the caller graph for this function:

struct ath_2d_fft_plan* ath_2d_fft_quick_plan	(	DomainS *	pD,
		ath_fft_data *	data,
		ath_fft_direction	dir
	)			`[read]`

Sets up an FFT plan for the entire 2D grid, assuming NX3=1, using ath_2d_fft_create_plan().

Definition at line 215 of file ath_fft.c.

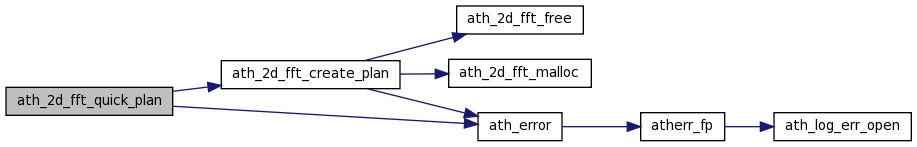

References ath_2d_fft_create_plan(), ath_error(), DomainS::Disp, gie, gis, gje, gjs, gnx1, gnx2, DomainS::Grid, DomainS::Nx, and GridS::Nx.

Referenced by selfg_fft_2d_init().

Here is the call graph for this function:

Here is the caller graph for this function:

void ath_3d_fft	(	struct ath_3d_fft_plan *	ath_plan,
		ath_fft_data *	data
	)

Performs a 3D FFT in place.

Definition at line 162 of file ath_fft.c.

References ath_3d_fft_plan::dir, and ath_3d_fft_plan::plan.

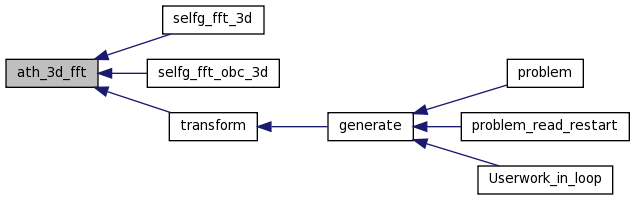

Referenced by selfg_fft_3d(), selfg_fft_obc_3d(), and transform().

Here is the caller graph for this function:

struct ath_3d_fft_plan* ath_3d_fft_create_plan	(	int	gnx3,
		int	gnx2,
		int	gnx1,
		int	gks,
		int	gke,
		int	gjs,
		int	gje,
		int	gis,
		int	gie,
		ath_fft_data *	data,
		int	al,
		ath_fft_direction	dir
	)			`[read]`

Sets up a 3D FFT plan.

gnx3, gnx2, gnx1 are the dimensions of the GLOBAL data
gks, gke, gjs, gje, gis, gie are the starting and ending indices of the LOCAL data in GLOBAL coordinates
data is any array of type ath_fft_data big enough to hold entire transform, for use in planning (contents will be trashed)
al != 0 means allocate data if it doesn't exist (otherwise temporary)
dir is either ATH_FFT_FOWARD or ATH_FFT_BACKWARD FFTs will be done in place (overwrite data)

Definition at line 95 of file ath_fft.c.

References ath_3d_fft_free(), ath_3d_fft_malloc(), ath_error(), ATH_FFT_BACKWARD, ATH_FFT_FORWARD, ath_3d_fft_plan::cnt, ath_3d_fft_plan::dir, ath_3d_fft_plan::gcnt, and ath_3d_fft_plan::plan.

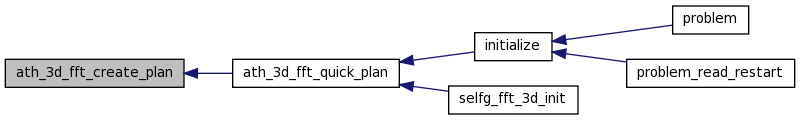

Referenced by ath_3d_fft_quick_plan().

Here is the call graph for this function:
